HDPE PET Bottle Recycling Line

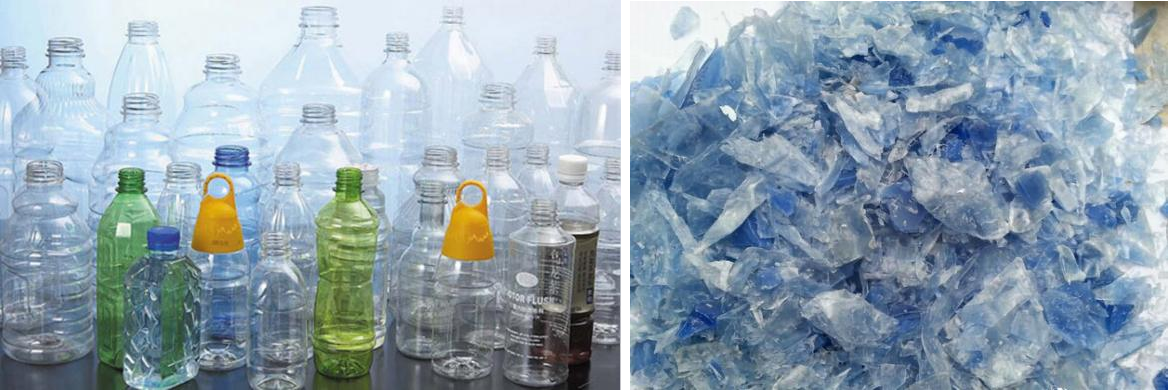

HDPE PET Bottle Recycling Line is suitable for crushing and cleaning waste PET bottles (including labels and caps) and separating labels to produce pure, dry and uniform size PET plastic flakes. Waste PET bottles exhibit diverse product specifications and material characteristics due to the complex recycling sources, for which we specially customize a series of recycling production solutions to meet the different production needs of our customers.

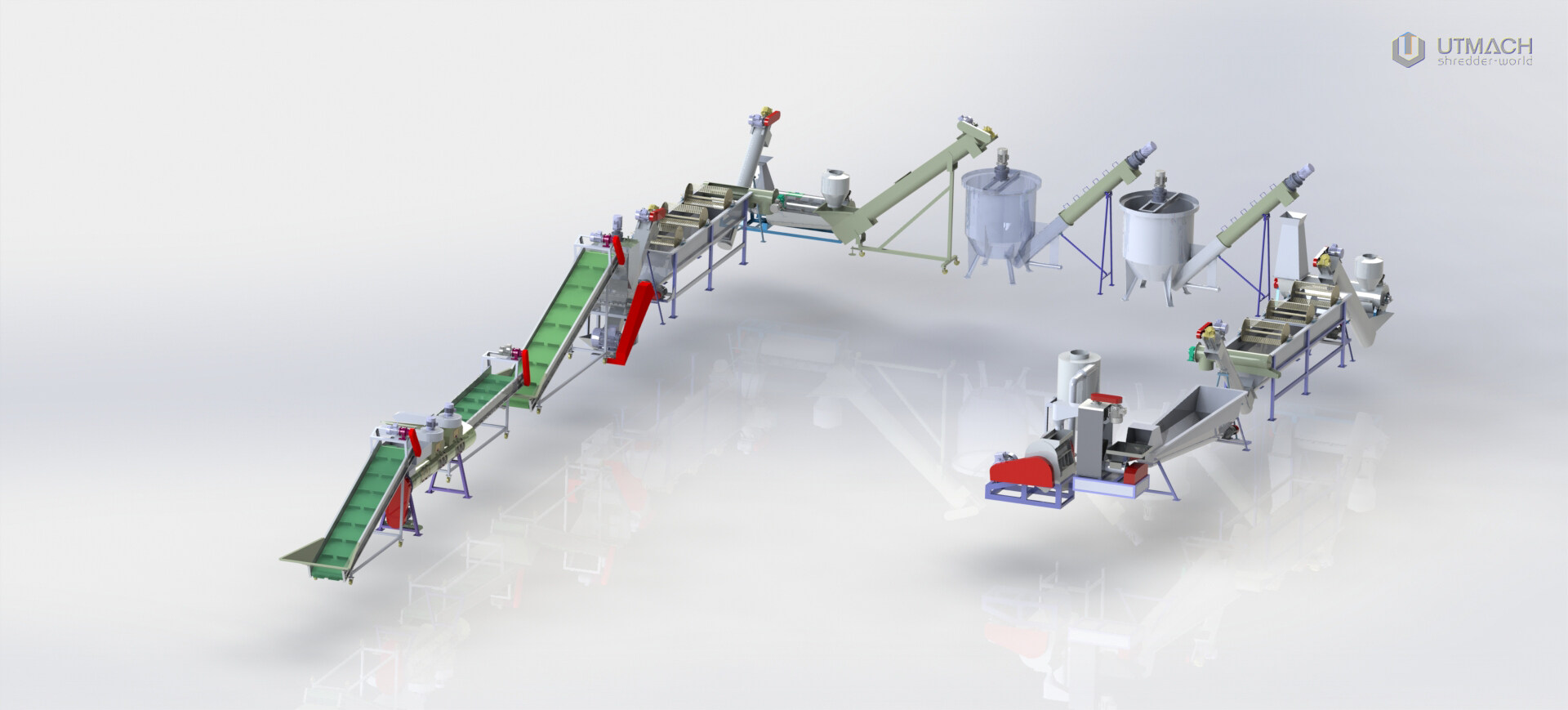

Production Line Structure

Bale opener : break up the extruded PET bottles
Disc sorting machine : remove stones, heavy objects and dislodged bottle caps
Manual sorting platform (optional) : manual sorting according to PET bottle type and color
Metal detection and separation equipment : detect and separate metal contaminants left in PET bottles
Pre-washing machine : cleaning part of the contaminants, such as residual beverage liquid
Shredder ① : add water to crush, so that the size of the bottle flakes reduce and get cleaned
Spiral washing machine ① : cleaning and transferring materials
Shredder ② : add water to crush, so that the bottle size further reduced, and continue to get cleaned
Spiral cleaning machine ② : continue to clean and transfer of materials
Centrifugal dehydrator ① : cleaning and drying bottle pieces
Debarring system ① : remove part of the label and residual contaminants
High-temperature cooking pot : high-temperature cleaning to remove glue and grease
Rinsing and sedimentation tank : remove floating labels and caps, further cleaning of precipitated bottles and flakes
Centrifugal dehydrator ② : dehydrating the bottle flakes
Label removal system ② : remove residual labels and contaminants
Fully automatic bagging system : to fill the finished product into storage bags or packaging bags

We provide customized machines, if you have any questions, please feel free to contact our sales.

Equipment Characteristic

Characteristic	（待定,空着即可）
Application	This line series is widely used for recycling HDPE PET Bottle for various purposes, including waste mineral water and beverage bottles, detergent and daily chemical product containers, snack containers, medicine bottles, and industrial HDPE PET Bottle, Liquid drums & containers, Milk bottles, Wheelie bins, Pipesubes, etc. and tubes, etc.
Output Size	Can be custom-made
Patented	（待定,空着即可）
